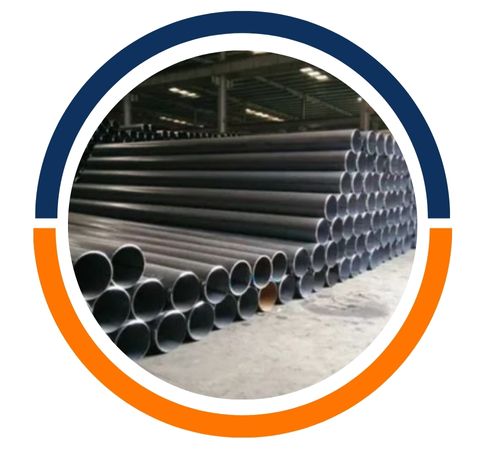

Dang Steel is a reliable manufacturer and supplier of Cold Drawn Seamless (CDS) tubing, proudly based in Da Nang, Vietnam. With cutting-edge production technology and a keen eye for precision, Dang Steel produces high-performance CDS tubing that adheres to international standards like ASTM A179, A519, and EN 10305. Renowned for its tight tolerances, exceptional surface finish, and impressive dimensional accuracy, Dang Steel’s CDS tubing is perfect for critical applications across the automotive, mechanical, hydraulic, and aerospace industries. The company’s dedication to quality, innovation, and customer satisfaction has established it as a go-to partner in both local and global markets.
CDS tubing from Dang Steel is generally crafted from low- to medium-carbon steel, featuring a carbon content that ranges from 0.15% to 0.35%, along with carefully controlled levels of manganese, sulfur, and phosphorus. This specific composition ensures outstanding strength, machinability, and surface quality. The mechanical properties include a tensile strength of 500–800 MPa and a yield strength between 300–600 MPa, depending on the grade and heat treatment. The cold drawing process further enhances the tubing’s dimensional precision, hardness, and structural integrity. CDS tubing is particularly suited for applications that require tight tolerances, high performance, and a superior surface finish.
| Condition | Nominal Yield Strength psi | Nominal Ultimate Strength psi | Nominal Elongation in 2% | Equivalent Rockwell Hardness | Equivalent Brinell Hardness |
| GRADE 1018 c .15/.20 Mn .60/90 P .40 max S .050 max | |||||
| Hot-Rolled | 35,000 | 60,000 | 30 | B-68 | 116 |
| Normalized | 38,000 | 58,000 | 35 | B-66 | 114 |
| Soft-Annealed | 33,000 | 50,000 | 40 | B-57 | 97 |
| As-Drawn | 70,000 | 85,000 | 10 | B-87 | 170 |
| CD-Stress Relief Annealed | 60,000 | 80,000 | 15 | B-85 | 163 |
| GRADE 1020 C. 18/.23 Mn .30/.60 P .040 max S .050 max | |||||
| Hot-Rolled | 38,000 | 60,000 | 30 | B-68 | 116 |
| Normalized | 40,000 | 58,000 | 35 | B-66 | 114 |
| Soft-Annealed | 33,000 | 53,000 | 40 | B-62 | 105 |
| As-Drawn | 65,000 | 80,000 | 10 | B-85 | 163 |
| CD-Stress Relief Annealed | 60,000 | 75,000 | 15 | B-81 | 149 |
| GRADE 1026 C .22/.28 Mn .60/.90 P .030 max S .050 max | |||||
| Hot-Rolled | 47,000 | 70,000 | 28 | B-77 | 137 |
| Normalized | 50,000 | 67,000 | 33 | B-74 | 131 |
| Soft-Annealed | 36,000 | 60,000 | 35 | B-68 | 116 |
| As-Drawn | 72,000 | 87,000 | 10 | B-89 | 179 |
| CD-Stress Relief Annealed | 65,000 | 82,000 | 15 | B-86 | 167 |
| OUTSIDE AND INSIDE DIAMETER TOLERANCES FOR ROUND COLD-WORKED SEAMLESS TUBING PER ASTM A519 | ||||||||||
| Outside Diameter Size Range in | Thermal Treatment after Final Cold Work Producing Size | |||||||||
| Wall Thickness as Percent of OD | None, or not exceeding 1100°F. Nominal Temperature | Heated Above 1100°F. Nominal Temperature Without Accelerated Cooling | ||||||||
| OD, in | ID, in | OD, in | ID, in | |||||||
| Over | Under | Over | Under | Over | Under | Over | Under | |||
| Up to 0.499 | All | 0.004 | 0.000 | — | — | 0.005 | 0.002 | — | — | |
| 0.500-1.699 | All | 0.005 | 0.000 | 0.000 | 0.005 | 0.007 | 0.002 | 0.002 | 0.007 | |
| 1.700-2.099 | All | 0.006 | 0.000 | 0.000 | 0.006 | 0.006 | 0.005 | 0.005 | 0.006 | |
| 2.100-2.499 | All | 0.007 | 0.000 | 0.000 | 0.007 | 0.008 | 0.005 | 0.005 | 0.008 | |
| 2.500-2.899 | All | 0.008 | 0.000 | 0.000 | 0.008 | 0.009 | 0.005 | 0.005 | 0.009 | |
| 2.900-3.299 | All | 0.009 | 0.000 | 0.000 | 0.009 | 0.011 | 0.005 | 0.005 | 0.011 | |
| 3.300-3.699 | All | 0.010 | 0.000 | 0.000 | 0.010 | 0.013 | 0.005 | 0.005 | 0.013 | |
| 3.700-4.099 | All | 0.011 | 0.000 | 0.000 | 0.011 | 0.013 | 0.007 | 0.010 | 0.010 | |
| 4.100-4.499 | All | 0.012 | 0.000 | 0.000 | 0.012 | 0.014 | 0.007 | 0.011 | 0.011 | |
| 4.500-4.899 | All | 0.013 | 0.000 | 0.000 | 0.013 | 0.016 | 0.007 | 0.012 | 0.012 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Wall Thickness | ||||||||||||||||||||
| DIA | SCH.5S | SCH.5 | SCH 10S | SCH.10 | SCH.20S | SCH.30 | SCH.40S | SCH.40 | SCH 60 | |||||||||||
| (A) | (B) | Meter MM | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 1 | 0.23 | 1.2 | 0.27 | 1.5 | 0.33 | 1.73 | 0.37 | ||||||||||
| 8 | 1/4 | 13.7 | 1.2 | 0.37 | 1.65 | 0.49 | 2 | 0.58 | 2.24 | 0.64 | ||||||||||
| 10 | 3/8 | 17.2 | 1.2 | 0.47 | 1.65 | 0.63 | 2 | 0.74 | 2.31 | 0.87 | ||||||||||
| 15 | 1/2 | 21.3 | 1.65 | 0.01 | 1.65 | 0.81 | 2.11 | 1.02 | 2.11 | 1.02 | 2.5 | 1.15 | 2.77 | 1.29 | ||||||
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 1.65 | 1.03 | 2.11 | 1.3 | 2.11 | 1.3 | 2.5 | 1.49 | 2.87 | 1.71 | ||||||
| 25 | 1 | 33.4 | 1.65 | 1.31 | 1.65 | 1.31 | 2.77 | 2.13 | 2.77 | 2.13 | 3 | 2.24 | 3.38 | 2.54 | ||||||
| 32 | 11/4 | 24.2 | 1.65 | 1.67 | 1.65 | 1.67 | 2.77 | 2.73 | 2.77 | 2.73 | 3 | 2.9 | 3.56 | 3.44 | ||||||
| 40 | 11/2 | 48.3 | 1.65 | 1.93 | 1.65 | 1.93 | 2.77 | 3.16 | 2.77 | 3.16 | 3 | 3.35 | 3.68 | 4.11 | ||||||
| 50 | 2 | 60.3 | 1.65 | 1.93 | 1.65 | 2.42 | 2.77 | 3.99 | 2.77 | 3.99 | 3.5 | 4.9 | 3.91 | 5.52 | ||||||
| 65 | 21/2 | 73 | 2.11 | 3.75 | 2.11 | 3.75 | 3.05 | 5.34 | 3.05 | 5.34 | 3.5 | 6 | 5.16 | 8.77 | ||||||
| 80 | 3 | 88.9 | 2.11 | 4.59 | 2.11 | 4.59 | 3.05 | 6.56 | 3.05 | 6.56 | 4 | 8.37 | 5.49 | 11.47 | ||||||
| 90 | 31/2 | 101.6 | 2.11 | 5.25 | 2.11 | 5.25 | 3.05 | 7.53 | 3.05 | 7.53 | 4 | 9.62 | 5.74 | 13.78 | ||||||
| 100 | 4 | 114.3 | 2.11 | 5.93 | 2.11 | 5.93 | 3.05 | 8.5 | 3.05 | 8.5 | 4.5 | 12.18 | 6.02 | 6.32 | ||||||
| 125 | 5 | 141.3 | 2.77 | 9.61 | 2.77 | 9.61 | 3.4 | 11.74 | 3.43 | 11.74 | 5 | 16.8 | 6.55 | 2210 | ||||||
| 150 | 6 | 168.3 | 2.77 | 11.47 | 2.77 | 11.47 | 3.4 | 14.04 | 3.43 | 14.04 | 5.5 | 22.08 | 7.11 | 28.69 | ||||||
| 200 | 8 | 219.1 | 2.77 | 15 | 2.77 | 15 | 3.76 | 20.77 | 3.76 | 20.27 | 6.35 | 33.82 | 7.04 | 37.38 | 8.18 | 43.2 | 10.81 | 53.9 | ||
| 250 | 10 | 273.1 | 3.4 | 22.95 | 3.4 | 22.95 | 4.19 | 28.2 | 4.19 | 28.2 | 6.35 | 42.41 | 7.8 | 51.81 | 9.27 | 61.22 | 12.2 | 82.8 | ||
| 300 | 12 | 323.9 | 3.96 | 31.72 | 4.19 | 33.6 | 4.57 | 36.54 | 4.57 | 36.54 | 6.35 | 50.48 | 8.38 | 66.2 | 9.53 | 75.01 | 10.31 | 80.94 | 14.27 | 110.62 |
| 350 | 14 | 355.6 | 3.96 | 34.86 | 4.78 | 41.99 | 6.35 | 55.53 | 7.92 | 68.95 | 9.53 | 82.58 | 9.53 | 82.58 | 11.13 | 96 | 15.06 | 128.42 | ||
| 400 | 16 | 406.4 | 4.19 | 42.2 | 4.78 | 48.07 | 6.35 | 63.61 | 7.92 | 79.03 | 9.53 | 94.7 | 9.53 | 94.7 | 12.7 | 125.2 | 16.66 | 162.59 | ||
| 450 | 18 | 457.2 | 4.19 | 47.46 | 4.78 | 54.15 | 6.35 | 71.69 | 7.92 | 89.1 | 11.13 | 124.32 | 9.53 | 106.83 | 14.27 | 158.27 | 19.05 | 209 | ||
| 500 | 2C | 508 | 4.78 | 60.23 | 5.54 | 69.7 | 6.35 | 79.76 | 9.53 | 118.93 | 12.7 | 157.51 | 9.53 | 118.9 | 15.06 | 185.89 | 2062 | 251.65 | ||
| 550 | 22 | 558.8 | 4.78 | 65.95 | 5.54 | 76.75 | 6.35 | 87.84 | 9.53 | 131.07 | 12.7 | 173.66 | 9.53 | 131.07 | 15.88 | 216.04 | 22.23 | 298.55 | ||
| 600 | 24 | 609.6 | 5.54 | 83.8 | 6.35 | 95.92 | 6.35 | 95.92 | 9.53 | 143.2 | 14.27 | 212.72 | 9.53 | 143.2 | 17.45 | 258.74 | 24.59 | 360.21 | ||
| 650 | 26 | 660.4 | 7.92 | 129.4 | 12.7 | 205.97 | 9.53 | 155.32 | ||||||||||||
| 700 | 28 | 711.2 | 7.92 | 139.47 | 12.7 | 222.13 | 15.88 | 276.48 | 9.53 | 167.44 | ||||||||||
| 750 | 3C | 762 | 6.35 | 120.15 | 7.92 | 149.55 | 7.92 | 149.55 | 12.7 | 238.28 | 15.88 | 296.68 | 9.53 | 179.56 | ||||||
| 800 | 32 | 812.8 | 7.92 | 159.62 | 12.7 | 254.44 | 15.88 | 316.88 | 9.53 | 191.69 | 17.48 | 348.11 | ||||||||
| 850 | 34 | 863.6 | 7.92 | 169.64 | 12.7 | 270.5 | 15.88 | 336.96 | 9.53 | 203.74 | 17.48 | 370.22 | ||||||||
| 900 | 36 | 914.4 | 7.92 | 179.77 | 12.7 | 286.75 | 15.88 | 357.28 | 9.53 | 215.93 | 19.05 | 427.09 | ||||||||
Cold Drawn Seamless (CDS) tubing finds extensive use in industries that prioritize high precision, strength, and surface quality. In the automotive field, it’s utilized for fuel injection systems, drive shafts, and shock absorbers. In hydraulics and pneumatics, CDS tubes are perfect for cylinder barrels and pressure lines. Additionally, it plays a vital role in mechanical engineering for structural supports, machinery parts, and precision components. Dang Steel’s CDS tubing is favored in critical applications due to its remarkable dimensional accuracy, excellent mechanical properties, and resistance to deformation under stress.
