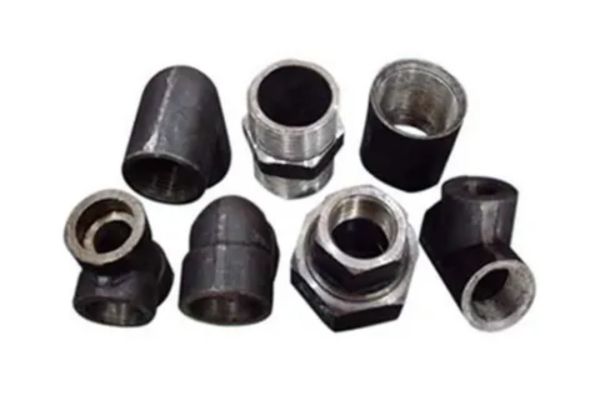

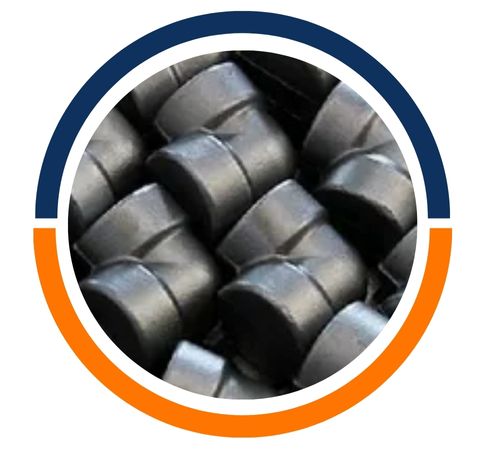

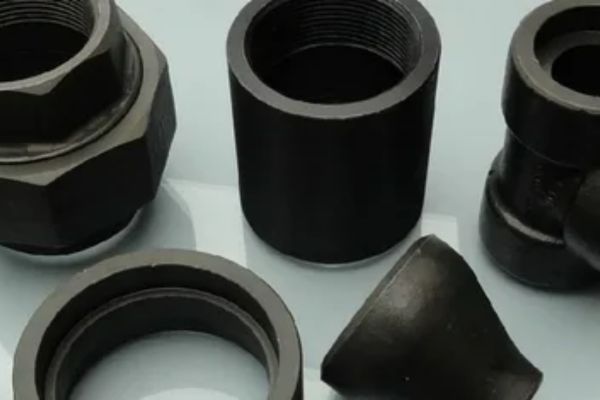

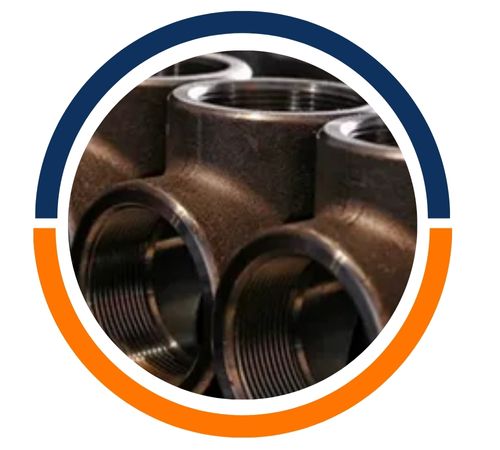

Introducing Dang Steel, a reputable manufacturer and supplier located in Da Nang, Vietnam, that specializes in high-quality Carbon Steel F65 Forged Fittings tailored for industrial use. Known for their exceptional durability, strength, and precise engineering, these fittings are crafted to meet international standards. With cutting-edge production methods and rigorous quality control, Dang Steel guarantees outstanding resistance to pressure, temperature, and mechanical stress. They offer a diverse range of sizes and specifications, ensuring that their forged fittings provide leak-proof connections and long-lasting performance, serving industries like oil & gas, petrochemical, power generation, and construction.
When it comes to composition and mechanical properties, Carbon Steel F65 Forged Fittings are made up of a carefully balanced mix of carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, and molybdenum. This thoughtful composition boosts their toughness, weldability, and resistance to corrosion. Mechanically, these fittings showcase impressive tensile strength, yield strength, and hardness, making them reliable under high-pressure and high-temperature scenarios. Their impact resistance and durability make them ideal for challenging environments. With a uniform grain structure and robust metallurgical properties, Carbon Steel F65 Forged Fittings are dependable, ensuring a long service life while maintaining structural integrity in critical industrial applications.
Standard : ASTM A694 / ASME SA 694
Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V | Nb |
| F65 | 0.17-0.23 | 0.15-0.40 | 1.30-1.60 | ≤ 0.025 | ≤ 0.015 | 0.45-0.65 | ≤ 0.30 | ≤ 0.30 | ≤ 0.25 | – | 0.025~0.050 |
| Grade | Yield Strength, Min (KSI ) | Tensile Strength, Min (KSI) |
| A694 | 65 | 77 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

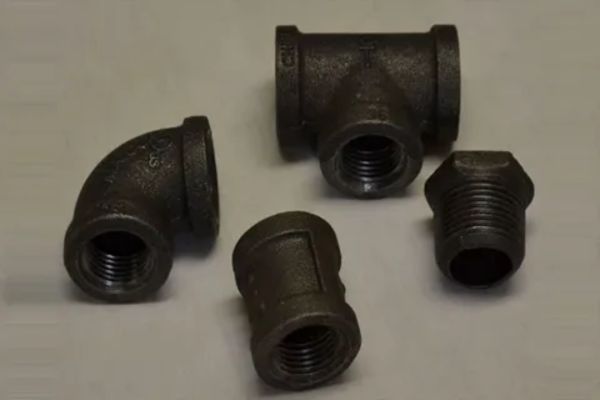

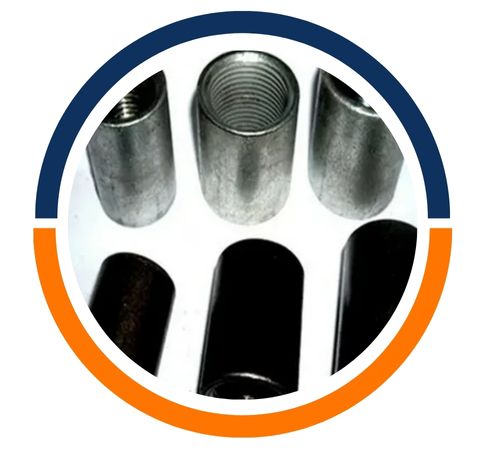

| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS F65 Forged Screwed Elbows, Street Elbow, Carbon Steel F65 Screwed Unequal Tee, Steel Straight Tee, Carbon Steel F65 Reducing Coupling, Carbon Steel F65 Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS F65 Threaded Bushing, Carbon Steel F65 Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel F65 Barrel Nipples, CS F65 Forged Threaded Boss, Carbon Steel F65 Forged Hex Head Bull Plugs |

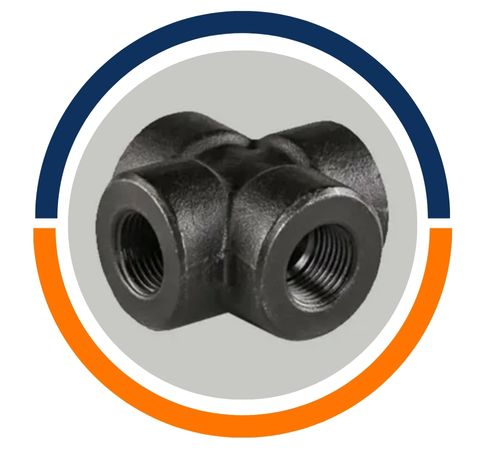

| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel F65 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, CS F65 caps, 3000LB Socket Weld Cross |

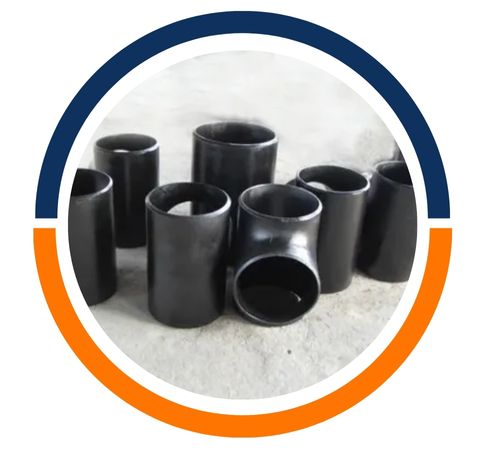

| MSS-SP-95 | Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends | CS F65 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel F65 Coupling |
Carbon Steel F65 Forged Fittings find their place in various industries that demand strength and resilience in extreme working conditions. They are commonly used in oil and gas pipelines, petrochemical facilities, refineries, and power generation systems, thanks to their ability to endure high pressure and temperature. These fittings create secure, leak-proof connections in fluid handling and gas distribution networks. Additionally, they play a vital role in shipbuilding, offshore drilling, and heavy machinery. Their versatility and reliability make them a go-to choice for many industrial applications.
Dang Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Da Nang, Vietnam.
