Dang Steel Manufacturer and Suppliers, based in Da Nang, Vietnam, has built a solid reputation in the steel industry by providing a diverse selection of top-notch Carbon Steel Buttweld Pipe Fittings. Renowned for their precision engineering and durability, these fittings meet international standards like ASTM, ASME, and ANSI. They find applications in various sectors, including oil & gas, petrochemicals, power, and construction. Utilizing advanced production methods and strict quality control, Dang Steel ensures the reliability of their products. With a robust distribution network and a focus on customer satisfaction, they have become a go-to supplier for industrial piping solutions both in Vietnam and internationally.
Carbon Steel Buttweld Pipe Fittings are generally made from grades such as ASTM A234 WPB, which contain up to 0.30% carbon and 0.29–1.06% manganese, along with small amounts of silicon, phosphorus, and sulfur. These fittings boast impressive mechanical properties, featuring a tensile strength ranging from 415 to 585 MPa and a minimum yield strength of 240 MPa. Their excellent toughness, weldability, and durability make them perfect for high-pressure and high-temperature applications. The well-balanced composition allows for easy fabrication while ensuring strength and resistance to mechanical stress, providing a long service life in demanding industrial environments.
| Pipe Fittings Specifications | ASTM A234/ ASME SA234 |
|---|---|
| Carbon Steel Pipe Fittings size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| CS Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1800, BS10 |
| Buttweld Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Pipe FittingsType | DN15-DN1200 |
| ASTM A234 Buttweld Fitting Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A234 Pipe Fitting |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A234 Buttweld Fitting |
| ASTM A234 Buttweld Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Carbon Steel Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SA 234 Pipe Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |

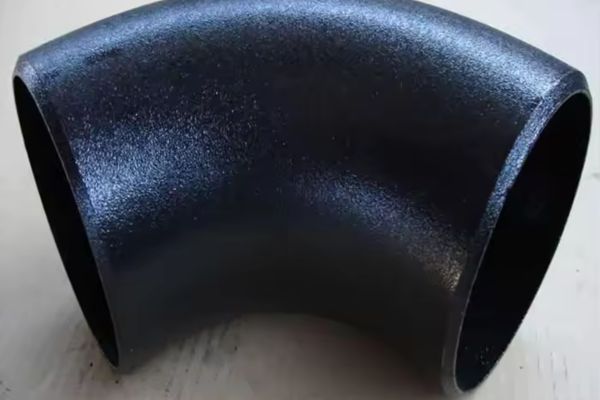

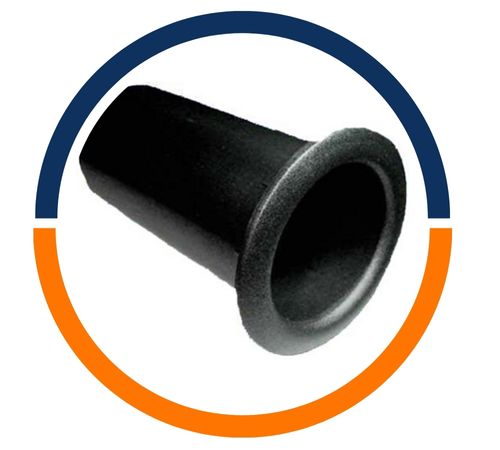

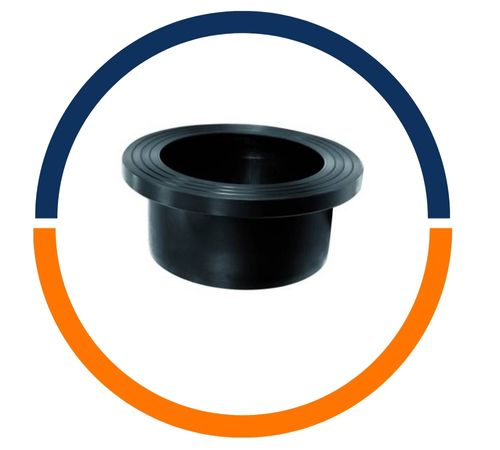

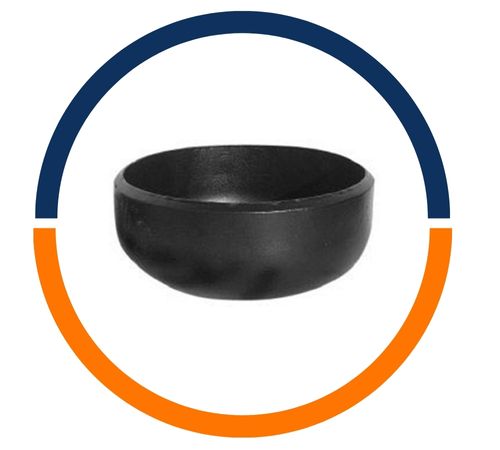

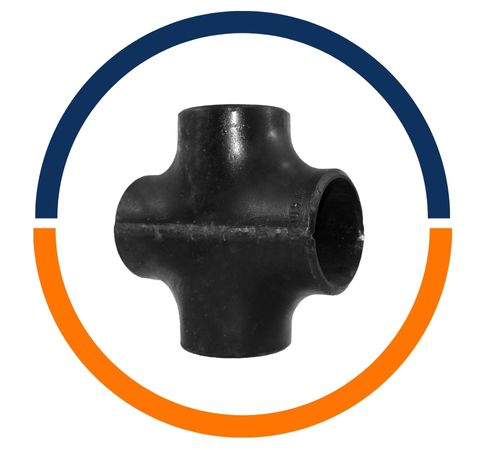

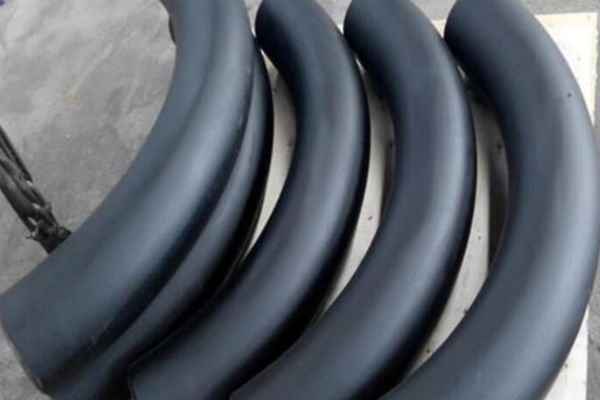

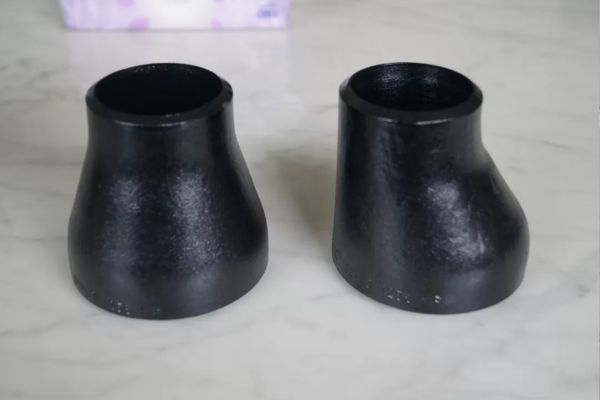

| Specialized manufacturer of | CS 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Element | Carbon Steel Buttweld Fittings (% by weight) |
|---|---|
| Carbon (C) | 0.05% – 2.1% |
| Manganese (Mn) | 0.30% – 1.65% |
| Silicon (Si) | 0.15% – 0.60% |
| Phosphorus (P) | ≤ 0.035% |
| Sulfur (S) | ≤ 0.040% |
| Iron (Fe) | Remainder (balance) |
| Properties OF Carbon Steel Buttweld Pipe Fittings | Metric | Imperial |
| Tensile Strength For Carbon Steel | 595 MPa | 86300 psi |
| Yield Strength For CS | 260 MPa | 37700 psi |
| Elasticity Modulus | 200 GPa | 29000 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation At break in 50 millimeter | 55% | 55% |
| Hardness And Rockwell B | 85 | 85 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NPS (Normal Pipe Size) | O.D. (Outside Diameter) | Ave. I.D. (Inside Daimeter) | Minimum WALL | Normal Weight Chart | Maximum W.P. psi |
| 1/4″ | .540 | .344 | .088 | .086 | 780 |
| 3/8″ | .675 | .473 | .091 | .115 | 620 |
| 1/2″ | .840 | .602 | .109 | .170 | 590 |
| 3/4″ | 1.050 | .804 | .113 | .226 | 480 |
| 1″ | 1.315 | 1.029 | .133 | .333 | 450 |
| *1-1/4″ | 1.660 | 1.360 | .140 | .450 | 370 |
| *1-1/2″ | 1.900 | 1.590 | .145 | .537 | 330 |
| *2″ | 2.375 | 2.047 | .154 | .720 | 280 |
| 2-1/2″ | 2.875 | 2.445 | .203 | 1.136 | 300 |
| *3″ | 3.500 | 3.042 | .216 | 1.488 | 260 |
| 3-1/2″ | 4.000 | 3.521 | .226 | 1.789 | 240 |
| *4″ | 4.500 | 3.998 | .237 | 2.118 | 220 |
| 5″ | 5.563 | 5.016 | .258 | 2.874 | 190 |
| *6″ | 6.625 | 6.031 | .280 | 3.733 | 180 |
| *8″ | 8.625 | 7.942 | .322 | 5.619 | 160 |
| *10″ | 10.750 | 9.976 | .365 | 7.966 | 140 |
| *12″ | 12.750 | 11.889 | .406 | 10.534 | 130 |
| *14″ | 14.000 | 13.073 | .437 | 12.462 | 130 |
| *16″ | 16.000 | 14.940 | .500 | 16.286 | 130 |
| *18″ | 18.000 | 16.809 | .562 | 20.587 | 130 |
| *20″ | 20.000 | 18.743 | .593 | 24.183 | 120 |
| *24″ | 24.000 | 22.544 | .687 | 33.652 | 120 |
| Pressure-Temperature ratings for ASME B16.9 Carbon Steel Buttweld Pipe Fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 – 1 Inches | 1 1/4 – 2 Inches | 2 1/2 – 3 Inches | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | – | 935 | 750 | 560 |
| 450 | 232 | – | 725 | 600 | 475 |
| 500 | 260 | – | 510 | 450 | 385 |
| 550 | 288 | – | 300 | 300 | 300 |
Dang Steel is a top manufacturer and supplier of high-quality Carbon Steel Buttweld Pipe Fittings products in Da Nang, Vietnam. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Carbon Steel Buttweld Pipe Fittings play a crucial role in pipeline systems, helping to direct flow, reduce pipe size, or alter the flow direction. Common types include elbows, tees, reducers, and caps. These fittings are extensively used in oil & gas pipelines, chemical processing, power plants, refineries, and shipbuilding. Their robust strength and ability to handle high pressure make them ideal for transporting steam, gas, and fluids. Moreover, their seamless integration with piping systems ensures efficient operation and reliability.
