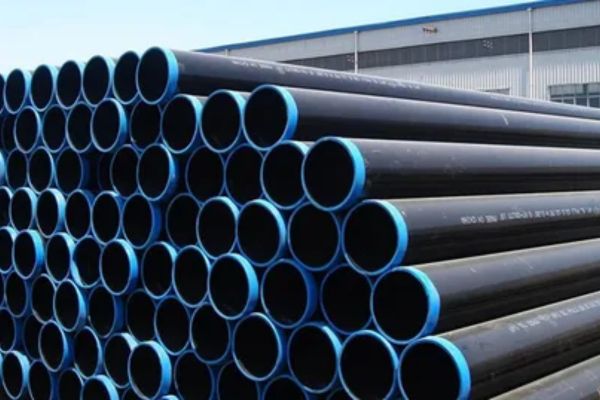

Dang Steel Manufacturer and Suppliers, located in Da Nang, Vietnam, stands out as a top-notch provider of high-quality steel piping solutions, including Carbon Steel BS3601 Pipes. Renowned for their precision manufacturing and exceptional material quality, they strictly adhere to international standards. Serving industries like oil & gas, power generation, water treatment, and general engineering, Dang Steel boasts a modern production facility and a skilled technical team. Their pipes are crafted to meet the rigorous BS3601 specifications, and their unwavering commitment to quality, timely delivery, and customer satisfaction has made them a trusted partner both at home and abroad.
Carbon Steel BS3601 Pipes are crafted from carbon-manganese steel, typically featuring carbon content up to 0.25% and manganese up to 1.20%, while keeping phosphorus and sulfur levels low to enhance weldability and formability. These pipes usually demonstrate a tensile strength ranging from 360 to 490 MPa and a minimum yield strength of 235 MPa. Designed for pressure systems, BS3601 pipes provide reliable toughness and elongation, ensuring they maintain structural integrity under moderate pressure and temperature. The balanced mechanical properties of the steel facilitate efficient fabrication and performance across various industrial applications that require medium-grade carbon steel.
| Dimensions | ASTM, ASME and API |
| Thickness | 50mm to 7.00mm, custom OD and thickness available on request |
| End | Plain End, Beveled End, Treaded |
| Length | Single Random, Double Random & Required Length, Custom Size – according to customer’s requirement |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Types | Seamless / ERW / Welded / Fabricated / CDW |
| Outer Diameter | 19.05mm to 127mm |
| Wall Thickness | 0.8mm to 6.0mm |
| Length | 6mtr/ 12mtr or Cut to Length |
| Capacity | 7000 Mt/Month |
Grade | Mfg. Process | Chemical Composition(%) | ||||||||
C | Si | Mn | P | S | Ni | Cr | Mo | Others | ||
BW320 | B | 0.16Max | – | 0.30~0.70 | 0.040Max | 0.040Max | – | – | – | – |
ERW320 | E | 0.16Max | – | 0.30~0.70 | 0.040Max | 0.040Max | – | – | – | – |
ERW360 | E | 0.17Max | 0.35Max | 0.40~0.80 | 0.040Max | 0.050Max | – | – | – | – |
ERW430 | E | 0.21Max | 0.35Max | 0.40~1.20 | 0.040Max | 0.040Max | – | – | – | – |
S360 | S | 0.17Max | 0.35Max | 0.40~0.80 | 0.040Max | 0.040Max | – | – | – | t 16mmMax 16mm<t 40mmMAX 40mm<t 65mmMax |
S430 | S | 0.21Max | 0.35Max | 0.40~1.20 | 0.040Max | 0.040Max | – | – | – | t 16mmMax 16mm<t 40mmMAX 40mm<t 65mmMax |
SAW430 | A | 0.25Max | 0.50Max | 1.20Max | 0.040Max | 0.040Max | – | – | – | t 16mmMax 16mm<t 40mmMAX 40mm<t 65mmMax |
|
Grade
|
Tensile Test MPa or N/mm2 |
Remaks (Similar to JIS) |
Possibility Temperature |
|
|
Min Yield point |
Tensile Strength |
|||
|
BW320 |
195 |
320~460 |
– |
|
|
ERW320 |
195 |
320~460 |
– |
|
|
ERW360 |
235 |
360~500 |
(STPG370) |
|
|
ERW430 |
195 |
430~570 |
(STPG410) |
|
|
S360 |
235
225
215 |
360~550 |
(STPG310) |
|
|
S430 |
275
265
255 |
430~570 |
(STPG410) |
|
|
SAW430 |
275
265
255 |
430~570 |
(STPY400) |
|
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Pipe Size (inches) | Outer Diameter (mm) | Wall Thickness (mm) | Weight (kg/m) |
|---|---|---|---|
| 1/2 | 21.3 | 2.11 | 1.21 |
| 3/4 | 26.7 | 2.11 | 1.62 |
| 1 | 33.4 | 2.77 | 2.49 |
| 1 1/4 | 42.2 | 3.56 | 3.74 |
| 1 1/2 | 48.3 | 3.68 | 4.46 |
| 2 | 60.3 | 3.91 | 5.71 |
| 3 | 88.9 | 5.49 | 11.29 |
| 4 | 114.3 | 6.02 | 16.07 |
| 6 | 168.3 | 7.11 | 28.26 |
Dang Steel is a leading manufacturer and exporter of high-quality Carbon Steel BS3601 Pipes in Da Nang, Vietnam. We offer a comprehensive range of steel solutions, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product portfolio includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliability and outstanding customer service, we are dedicated to delivering top-tier steel products designed for demanding industrial applications, ensuring long-lasting durability and superior performance. Dang Steel is your trusted partner for all Carbon Steel BS3601 Pipe needs.
Carbon Steel BS3601 Pipes find their primary use in transporting fluids and gases under pressure in non-critical industrial settings. They are commonly employed in water supply lines, low-pressure steam systems, HVAC systems, and air compression pipelines. These pipes are particularly well-suited for mechanical and general engineering applications, including structural uses. Thanks to their excellent weldability, moderate strength, and resistance to corrosion, they are ideal for fabrication projects in the construction, chemical, and marine industries.
Dang Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Da Nang, Vietnam.
