Dang Steel, a reputable manufacturer and supplier based in Da Nang, Vietnam, specializes in high-quality Carbon Steel API 5L X60 PSL 2 Pipes. These pipes are meticulously crafted to meet the rigorous demands of the oil, gas, and energy industries. Engineered with precision and adhering to international standards, they promise reliability and durability for critical applications. With a strong focus on performance and stringent quality control, Dang Steel delivers robust pipeline solutions that ensure efficiency, safety, and cost-effectiveness for large-scale infrastructure and industrial projects.
The Carbon Steel API 5L X60 PSL 2 Pipes are mainly made up of carbon, manganese, phosphorus, sulfur, and small amounts of micro-alloying elements like niobium, vanadium, and titanium. They boast impressive strength, featuring a minimum yield strength of 415 MPa and a tensile strength of 520 MPa, which guarantees durability even in high-pressure situations. These pipes are known for their exceptional toughness, weldability, and fracture resistance, making them ideal for long-distance pipeline transport. Furthermore, the API X60 PSL 2 grade ensures controlled chemistry, tighter tolerances, and enhanced mechanical properties compared to PSL 1, providing greater reliability and safety.
| Grade of material | X60 / L415 (N, M, Q, R) /td> |
| Standard | ISO 3183 L415/ API 5L X60 |

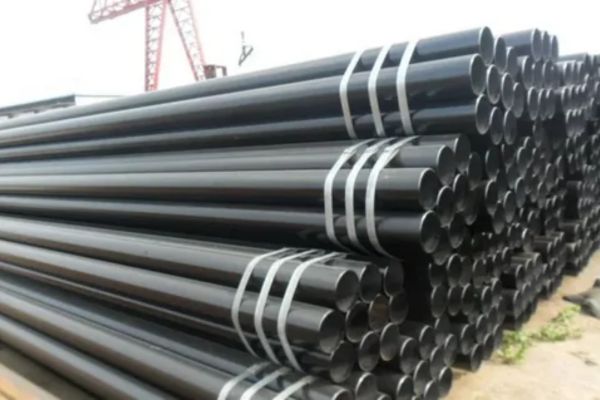

| API 5L X60 Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2” – 26”) |
| X60 SAW | 16″ – 100″ NB |

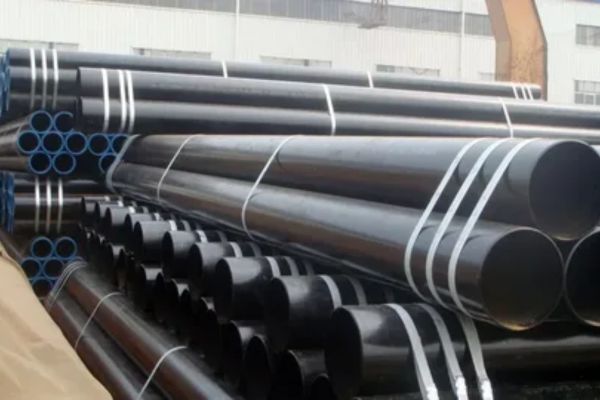

| API 5L X60 PSL2 ERW and HFW | 1/2” NB – 24” NB |

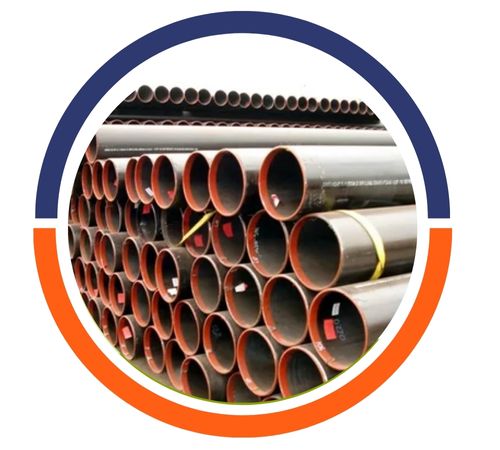

| Grade L415 X60 LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |
| API 5L X60 PSL2 Pipe end | Pub Joints, Coupling, Deburring, Flanged Ends, Grooved, Buttweld, Beveled End (BE), Square Cut, Thread Cutting, Cut Grooves, Squared Ends, Chamfering, Plain end (PE), Threaded Ends (Male & Female), Vibrator Grinding, Socket, Screwed |
| X60 Carbon Steel Pipe Length | DRL, SRL, 20FT, 40FT, Single Random Length (SRL), Double Random Length (DRL), and Fixed Length 5.8 Meter, 12.0 Meters (40FT), 6.0 Meters (20FT), 11.8 Meters |
| API 5L X60 Wall Thickness | SCH160, SCH-STD, SCH-XXS, SCH-XS, SCH40, SCH80, |
| PSL Level | |
| Coating for API 5L X60 Line Pipe | Black Painting, 3PE, lined pipe, Galvanized, CRA clad, FBE, Varnished, 3PP, 3LPE, Anti-Rust Oi, |

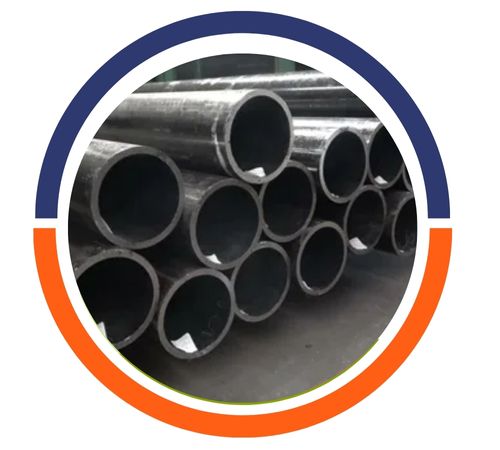

| Manufacturing process | Electro Fusion Seam Welded (EFSW), Cold Drawn Seamless (CDS), Electric Resistance Welded (ERW), Submerged Arc Welded (SAW), Welded, Longitudinally Submerged Arc Welded (LSAW), Extrusion, Seamless, Horizontal Submerged Arc Welded (HSAW), Hot Finish Seamless (HFS) |
| Approvals | KNPC, Merkblatt W0, PED, EIL, HAF 604, L&T, BP, ISO 17025 for Laboratories, IBR, NORSOK M-650, Saudi Aramco, AD2000, PED 97/23/EC, ONGC, Shell |
| Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | ||||||||||
| % MAXIMUM | |||||||||||
| Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | |
| CS PIPES | |||||||||||
| X60 | 0.24f | 0.45f | 1.4f | 0.025 | 0.015 | 0.10f | 0.05 | 0.04 | g,h | 0.43 | 0.25 |
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 415(60 200) | 565(81 900) | F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NB | DN | OD (inches) | API 5L X60 Pipe Schedule | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 5 | SCH 10 | SCH 20 | SCH 30 | SCH 40 | SCH 60 | SCH 80 | SCH 100 | SCH 120 | SCH 160 | ||||
| 3/4″ | 20 | 1.05 | 0.065 | 0.11 | x | 0.095 | 0.113 | x | x | 0.17 | x | 0.219 | |
| 1″ | 25 | 1.315 | 0.065 | 0.11 | x | 0.114 | 0.133 | x | x | 0.2 | x | 0.25 | |
| 1.1/2″ | 40 | 1.9 | 0.065 | 0.11 | x | 0.125 | 0.145 | x | x | 0.225 | x | 0.281 | |
| 2″ | 50 | 2.375 | 0.065 | 0.12 | x | x | 0.154 | x | x | 0.25 | x | 0.344 | |
| 2.1/2″ | 65 | 2.875 | 0.083 | 0.12 | x | x | 0.203 | x | x | 0.3 | x | 0.375 | |
| 3″ | 80 | 3.5 | 0.083 | 0.12 | x | x | 0.216 | x | x | 0.35 | x | 0.438 | |
| 4″ | 100 | 4.5 | 0.083 | 0.12 | x | x | 0.237 | x | x | 0.437 | x | 0.531 | |
| 5″ | 125 | 5.563 | 0.109 | 0.12 | x | x | 0.258 | x | x | 0.5 | x | 0.625 | |
| 6″ | 150 | 6.625 | 0.109 | 0.13 | x | x | 0.28 | x | x | 0.562 | x | 0.719 | |
| 8″ | 200 | 8.625 | 0.109 | 0.15 | 0.25 | 0.277 | 0.322 | 0.406 | 0.593 | 0.718 | 0.812 | 0.906 | |
| 10″ | 250 | 10.75 | 0.134 | 0.17 | 0.25 | 0.307 | 0.365 | 0.5 | 0.718 | 0.843 | 1.0 | 1.125 | |
| 12″ | 300 | 12.75 | 0.165 | 0.18 | 0.25 | 0.33 | 0.406 | 0.5 | 0.843 | 1.0 | 1.125 | 1.312 | |
Dang Steel is a leading supplier of high-quality Carbon Steel API X60 5L PSL 2 Pipes products in Da Nang, Vietnam. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
Carbon Steel API 5L X60 PSL 2 Pipes find extensive use in oil and gas transportation systems, both offshore and onshore pipeline projects, as well as in the petrochemical industry. Their high strength and toughness make them perfect for transporting natural gas, crude oil, and water over long distances under extreme pressure. They are also utilized in power generation plants, refineries, structural applications, and process industries that require dependable fluid conveyance. With their excellent weldability and resistance to fractures, these pipes ensure a long service life and operational safety, making them a top choice for critical infrastructure projects across the energy and construction sectors.
