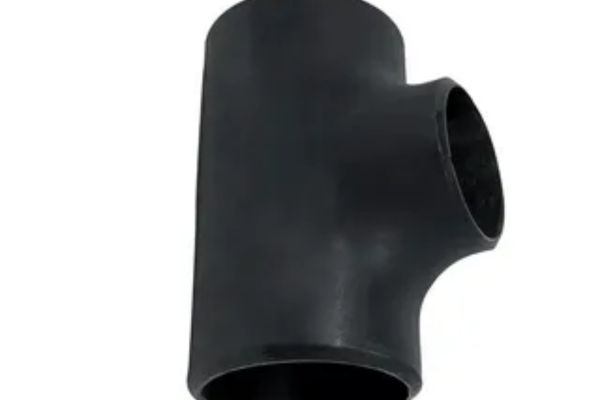

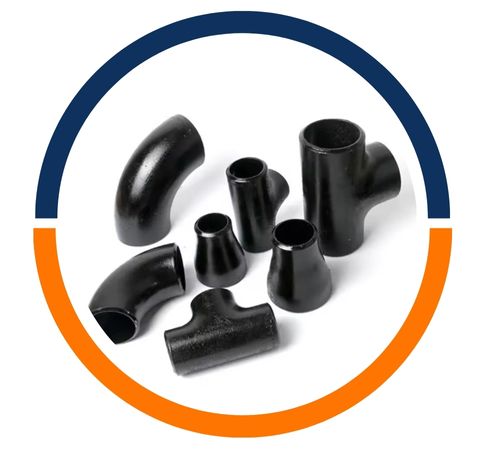

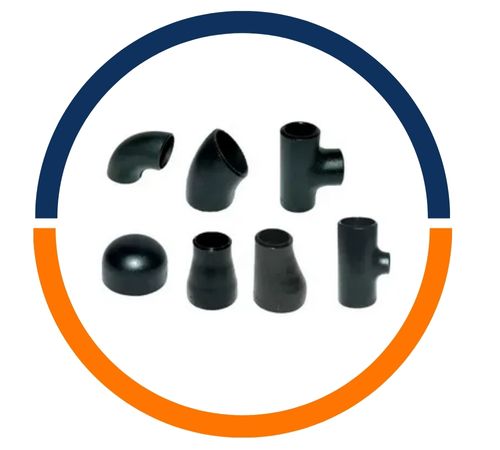

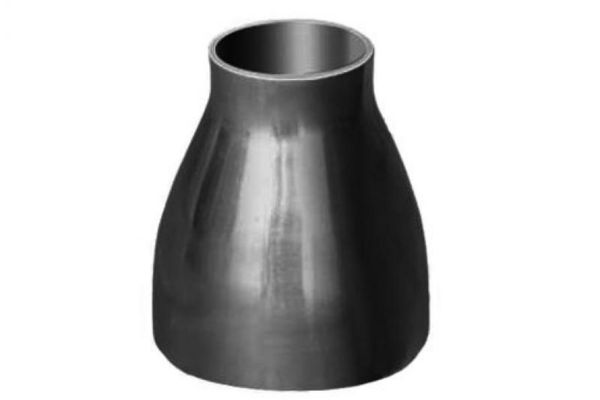

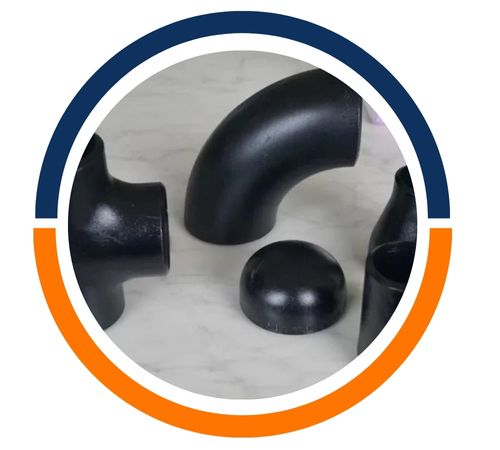

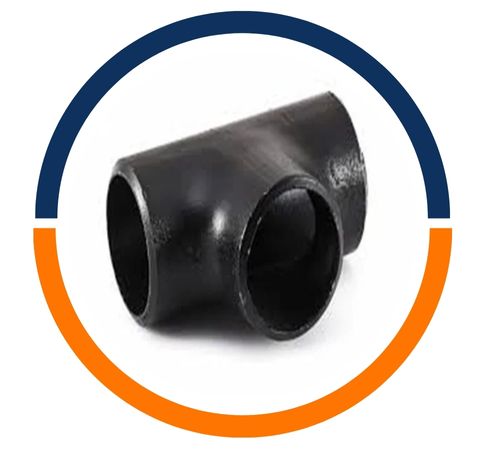

Dang Steel, based in Da Nang, Vietnam, is a trusted name in the manufacturing and supply of Carbon Steel A234 WPB Pipe Fittings, catering to both local and global markets. Known for its precision engineering and unwavering quality, Dang Steel offers a diverse selection of A234 WPB fittings, including elbows, tees, reducers, and caps. These fittings are perfect for pressure piping and pipeline systems in industries like power generation, refineries, petrochemicals, and oil & gas. With a commitment to durability, precise dimensions, and strict compliance with international standards, Dang Steel guarantees that every product meets the rigorous demands of industrial infrastructure and fluid transport systems.
When it comes to the composition and mechanical properties of Carbon Steel A234 WPB Pipe Fittings, these are crafted from wrought carbon steel, typically containing up to 0.30% carbon, 0.29–1.06% manganese, and minimal amounts of phosphorus (≤0.05%) and sulfur (≤0.058%). These fittings boast impressive mechanical characteristics, including a minimum tensile strength of 415 MPa and a yield strength of 240 MPa. Their good toughness and weldability make them ideal for moderate to high-pressure settings. Dang Steel ensures that each fitting goes through thorough testing and inspection to deliver high performance and a long lifespan in critical piping applications.
| Specification | ASTM A234 / ASME SA234 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/2″ NB to 24″NB in. |
| Type | Seamless / Welded / Fabricated |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Surface Treatment | Rust-proof black oil or hot galvanized, Transparent oil |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Grade | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V | Nb |
| WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
| Tensile Requirements | WPB | WPC |
| Tensile Strength, min, ksi[MPa] | 60-85 [415-585] | 70-95 [485-655] |
| Yield Strength, min, ksi[MPa] | 32 [240] | 40 [275] |
| Pipe | Fittings | Flanges | Valves | Bolts & Nuts |
| A106 Gr B | A234 Gr WPB | A105 | A216 Gr WCB | A193 Gr B7 A194 Gr 2H |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Minimal Pipe Size | O.D. | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | LR | SR | LR | LR | ||||
| (Millimetre) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radii (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Dang Steel is a top manufacturer and supplier of high-quality Carbon Steel A234 WPB Pipe Fittings products in Da Nang, Vietnam. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Carbon Steel A234 WPB Pipe Fittings from Dang Steel find extensive use in high-temperature and high-pressure piping systems across a variety of industries. They are commonly employed in oil & gas transmission lines, chemical processing, water treatment facilities, power generation, and HVAC systems. These fittings facilitate smooth directional changes, branching, and size transitions in pipelines, ensuring efficient flow and structural integrity. Thanks to their toughness, corrosion resistance, and excellent weldability, A234 WPB fittings are a popular choice in many demanding applications.
