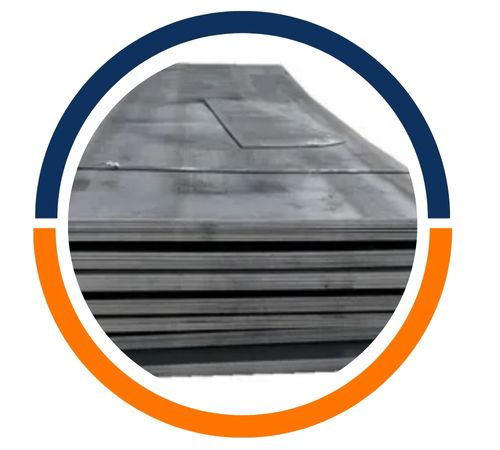

Dang Steel, based in Da Nang, Vietnam, stands out as a top manufacturer and supplier of premium Boiler Quality Sheet and Plates, specifically designed for high-pressure and high-temperature settings. Adhering to global standards like ASTM, ASME, and EN, Dang Steel’s boiler plates are highly regarded for critical applications such as pressure vessels, boilers, heat exchangers, and power plants. With cutting-edge processing technology, rigorous quality control, and a strong focus on durability and safety, Dang Steel delivers tailored solutions for various industries in Vietnam and beyond, ensuring reliable performance and structural integrity even in the toughest conditions.
Boiler Quality Sheet and Plates are generally crafted from carbon-manganese steel grades, including ASTM A516 Gr 60/70 or EN 10028 P265GH. They typically contain Carbon (0.18–0.28%), Manganese (0.90–1.70%), Silicon (0.13–0.45%), along with minimal Sulfur and Phosphorus. These plates are known for their outstanding weldability, notch toughness, and ability to resist high pressure and temperature. Their mechanical properties feature a tensile strength ranging from 415 to 620 MPa, yield strength between 240 and 355 MPa, and elongation of 21 to 30%. At Dang Steel, every plate is subjected to ultrasonic testing and mechanical inspection to ensure optimal performance in pressure-intensive environments.
Standard: ASTM A516 / ASME SA 516 Gr 60 / 65/ 70
Width: 1000mm-4500mm
Thickness: 5mm-150mm
Length: 3000mm-18000mm
Supply Condition : As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : -52° C
Tempering: Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications : Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service.
Process of Manufacturing : Hot-Rolled (HR)
| C | Mn | P max | S max | Si max | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| t < 12.5 mm | 12.5mm < t =50mm | 50mm < t ≤ 100mm | 100mm < t ≤ 200mm | t < 200 mm | t < 12.5 mm | t 12s.5 mm | ||||
| A516 Grade 55 | 0.18 | 0.2 | 0.22 | 0.24 | 0.26 | 06-09 | 0.55-0.98 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Grade 60 | 0.21 | 0.23 | 0.25 | 0.27 | 0.27 | 06-09 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Grade 65 | 0.24 | 0.26 | 0.28 | 0.29 | 0.29 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Grade 70 | 0.27 | 0.28 | 0.3 | 0.31 | 0.31 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| Tensile Strength (ksi) | Tensile Strength (MPa) | Yield Strength (ksi) | Yield Strength (MPa) | Elongation in 200mm(%) | Elongation in 50mm(%) | |
|---|---|---|---|---|---|---|
| A516 Grade 55 | 55-75 | 380-515 | 30 | 205 | 23 | 27 |
| A516 Grade 60 | 60-80 | 415-550 | 32 | 220 | 21 | 25 |
| A516 Grade 65 | 65-85 | 450-585 | 35 | 240 | 19 | 23 |
| A516 Grade 70 | 70-90 | 485-620 | 38 | 260 | 17 | 21 |
| Material # | EN 10028-2 | DIN 17155> | BS 1501 | ASTM | JIS G3115 |
|---|---|---|---|---|---|
| 1.0345 | P235GH | HI | 161 Gr. 360 / 164 Gr. 360 | A 285 Gr. C-A 414 Gr. C / A 516 Gr. 55 | SPV 24 |
| 1.0425 | P265GH | HII | 161 Gr. 400 / 164 Gr. 400 / 224 Gr. 400 | A 414 Gr. E / A 516 Gr. 60 | |
| 1.0481 | P295GH | 17 Mn 4 | 224 Gr. 490 | A 414 Gr. F / A 516 Gr. 65 | SPV 32 |
| 1.0473 | P355GH | 19 Mn 6 | A 414 Gr. G | SPV 36 | |
| 1.5415 | 16Mo3 | 15 Mo 3 | 1503 – 243 B | A 204 Gr. B | |
| 1.7335 | 13CrMo4-5 | 13CrMo 4 4 | 620 Gr. 27 | A 387 Gr. 12 | |
| 1.738 | 10CrMo9-10 | 10CrMo 9 10 | 622 Gr. 31 | A 387 Gr. 22 | |
| 1.7383 | 11CrMo9-10 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Thickness mm | Size (Length x width) | Thickness mm | Size (Length x width) | Thickness mm | Size (Length x width) |
|---|---|---|---|---|---|
| 8 | 2055 x 12100 | ||||
| 3000 x 12000 | 2500 x 12000 | ||||
| 2500 x 12000 | 20 | 2055 x 12000 | 60 | 3000 x 6000 | |
| 3460 x 14000 | 3000 x 12000 | 65 | 3000 x 6000 | ||
| 3460 x 14000 | |||||
| 6 | 2055 x 12100 | 18 | 2055 x 12100 | 50 | 2055 x 8000 |
| 3000 x 12000 | 3000 x 12000 | ||||
| 2500 x 12000 | 2500 x 12000 | 3000 x 9000 | |||
| 3460 x 14000 | 55 | 3000 x 6000 | |||
| 12.5 | 2055 x 12100 | 4000 x 12000 | 90 | 3000 x 4000 | |
| 3460 x 14000 | 2500 x 12000 | ||||
| 3000 x 12000 | 25 | 2055 x 12000 | 100 | 3000 x 4000 | |
| 2500 x 12000 | |||||
| 4000 x 12000 | 3460 x 14000 | ||||
| 4000 x 12000 | |||||
| 10 | 2055 x 12100 | 4000 x 12000 | 70 | 3000 x 6000 | |
| 4000 x 12000 | 3000 x 12000 | 80 | 3000 x 6000 | ||
| 3000 x 12000 | 22 | 2055 x 12100 | 75 | 3000 x 6000 | |
| 2500 x 12000 | |||||
| 3460 x 14000 | 2500 x 12000 | ||||
| 3460 x 14000 | |||||
| 15 | 2055 x 12100 | 2500 x 12000 | |||
| 4000 x 12000 | 2500 x 10000 | ||||
| 3000 x 12000 | |||||
| 2500 x 12000 | 3000 x 10000 | ||||
| 3460 x 14000 | 40 | 2055 x 12000 | |||
| 3000 x 10000 | |||||
| 13 | 2055 x 12100 | ||||
| 3460 x 14000 | 4000 x 12000 | ||||
| 3000 x 12000 | 2500 x 12000 | ||||
| 2500 x 12000 | 30 | 2055 x 12000 | |||
| 4000 x 12000 | |||||
| 35 | 2055 x 12000 | ||||
| 16 | 2055 x 12100 | ||||
| 4000 x 12000 | |||||
| 3000 x 12000 | 2500 x 10000 | ||||
| 2500 x 12000 | 45 | 2055 x 8000 | |||
| 3460 x 14000 | 3000 x 9000 |
Dang Steel’s Boiler Quality Sheet and Plates find extensive use in the construction of boilers, pressure vessels, heat exchangers, and storage tanks where high strength and thermal resistance are crucial. These plates play a vital role in power generation, oil and gas refineries, chemical processing facilities, and marine applications. Thanks to their capacity to endure extreme pressure and temperature, they are perfect for manufacturing steam drums, industrial autoclaves, and reactor vessels.
