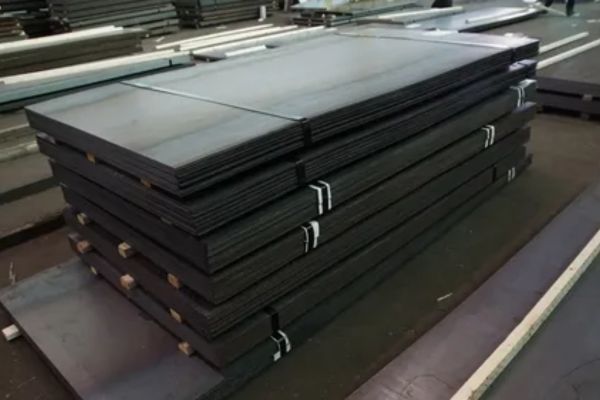

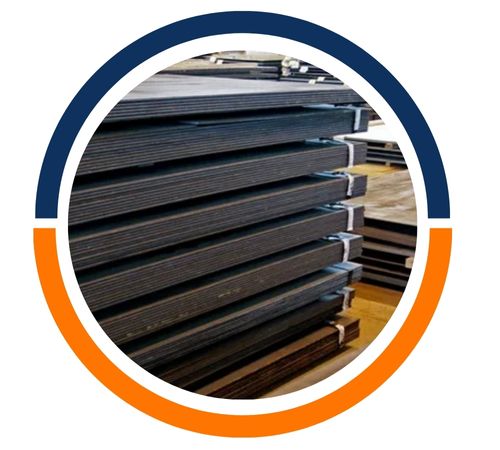

Dang Steel, a reputable manufacturer and supplier located in Da Nang, Vietnam, proudly offers top-notch ASTM A572 Gr 50 Sheets and Plates. These products are well-known for their strength, reliability, and outstanding performance. Crafted with precision to meet international standards, these plates are perfect for industries that demand high strength and excellent weldability. ASTM A572 Gr 50 is a structural quality steel that’s ideal for construction and engineering projects, providing both durability and cost-effectiveness. At Dang Steel, we prioritize consistent quality, timely delivery, and customer satisfaction, making us a go-to choice for ASTM A572 Gr 50 Sheets and Plates.
ASTM A572 Gr 50 Plates and Sheets contain carbon, manganese, phosphorus, sulfur, silicon, vanadium, columbium, and copper, which make them stronger and corrosion-resistant. They possess a minimum yield point of 50 ksi (345 MPa) and tensile strength of 65 ksi (450 MPa), making them durable and tough. Benefits are high strength-to-weight ratio, good weldability, excellent atmospheric corrosion resistance, and low cost. These characteristics render them suitable for construction, bridges, heavy machinery, and structural use, providing lasting performance under extreme conditions.
| Specifications | : | ASME SA572 / ASTM A572 |
|---|---|---|
| Width | : | 1500-4020mm |
| Length | : | 3000-27000mm |
| Thickness | : | 8-300mm |
| Hardness | : | As per ASME A & NACE MR 175 |
| Impact tested | : | Impact tested -52° C |

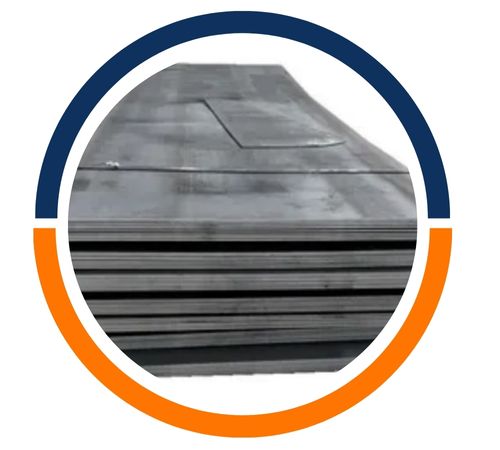

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR) |
| Grade | C | Mn | P | V | Ni | Co | S | Si |
| A572 Grade 50 | 0.23 | 1.35 | 0.04 | 0.06 | 0.015 | 0.05 | 0.05 | 0.4 |
| Grade | Thickness | Yield | Tensile | Elongation |
| A572 Grade 50 | 8mm-200mm | MPa -345 min | MPa – 450 | 18-21% |
| Grade | India IS | England BS | Sweden MNC | Belgium NBN | Europe EN | Russia GOST |
| A572 Grade 50 Plate | FE410WC | 43EE | SS14,14，01 | AE 295 DD | S275 J2G3 Fe430 D2 S275NL |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| GRADE | GAUGE (INCHES) | WIDTH (INCHES) | LENGTH (INCHES) |
| A572 | 0.1875 | 96 | 240/480 |
| A572 | 0.2500 | 60/96/120 | 240/480 |
| A572 | 0.3125 | 60/96/120 | 240/480 |
| A572 | 0.3750 | 60/96/120 | 240/480 |
| A572 | 0.5000 | 60/96/120 | 240/480 |
| A572 | 0.6250 | 60/96/120 | 240/480 |
| A572 | 0.7500 | 60/96/120 | 240/480 |
| A572 | 0.8750 | 60/96/120 | 240/480 |
| A572 | 1.0000 | 60/96/120 | 240/480 |
| A572 | 1.1250 | 60/96/120 | 240/480 |
| A572 | 1.2500 | 60/96/120 | 240/480 |
| A572 | 1.5000 | 60/96/120 | 240/480 |
| A572 | 1.7500 | 60/96/120 | 240/480 |
| A572 | 2.0000 | 60/96/120 | 240/480 |
| A572 | 2.2500 | 96 | 240/480 |
| A572 | 2.5000 | 96 | 240/480 |
| A572 | 2.7500 | 96 | 240/480 |
| A572 | 3.0000 | 96 | 240/480 |
| A572 | 3.2500 | 96 | 240 |
| A572 | 3.5000 | 96 | 240 |
| A572 | 3.7500 | 96 | 240 |
| A572 | 4.0000 | 96 | 240 |
| A572 | 5.0000 | 96 | 240 |
| A572 | 6.0000 | 96 | 240 |
These ASTM A572 Gr 50 Sheets and Plates are widely used in structural applications where the strength-to-weight ratio is crucial. They’re perfect for bridge construction, high-rise buildings, industrial platforms, transmission towers, and general structural frameworks. Thanks to their superior mechanical properties, they’re ideal for heavy load-bearing components like beams, columns, and trusses. Additionally, they find extensive use in transportation equipment, construction machinery, and storage tanks. Their weldability and toughness also make them suitable for fabrication projects that require customized shapes and sizes, ensuring versatility and reliability across infrastructure, civil engineering, and manufacturing sectors.
Dang Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Da Nang, Vietnam.
