Dang Steel, a well-respected manufacturer and supplier based in Da Nang, Vietnam, specializes in high-quality Alloy Steel P1 Pipes that are crafted to meet ASTM A335/ASME SA335 standards. These pipes are celebrated for their impressive toughness, strength, and resistance to corrosion and oxidation, even at moderate temperatures. With a commitment to precision, durability, and consistent performance, Dang Steel employs advanced production technology and rigorous quality control measures. Their Alloy Steel P1 Pipes are extensively distributed in both domestic and international markets, catering to the needs of power plants, refineries, petrochemical facilities, and various other industrial sectors.
The composition of Alloy Steel P1 Pipes includes carbon (0.10–0.20%), molybdenum (0.44–0.65%), manganese (0.30–0.80%), and silicon (0.10–0.50%), all while maintaining low levels of phosphorus and sulfur. This blend results in a tensile strength of approximately 380–550 MPa, a yield strength of 205 MPa, and a minimum elongation of 30%. The inclusion of molybdenum enhances hardenability, toughness, and resistance to high-temperature creep. These pipes demonstrate excellent mechanical properties under moderate pressure and thermal conditions, making them ideal for both structural and pressure-related applications.
| Alloy Steel P1 pipe Size | 1/2” NB to 36” NB |
| P1 Grade Steel Pipe Standard | ASTM A335 P1, SA335 P1 (with IBR Test Certificate) |
| ASTM A335 P1 Alloy Steel Pipe Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| SA335 P1 Pipe Thickness | 3-12mm |
| ASTM A335 P1 Pipes Tolerance | Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm |

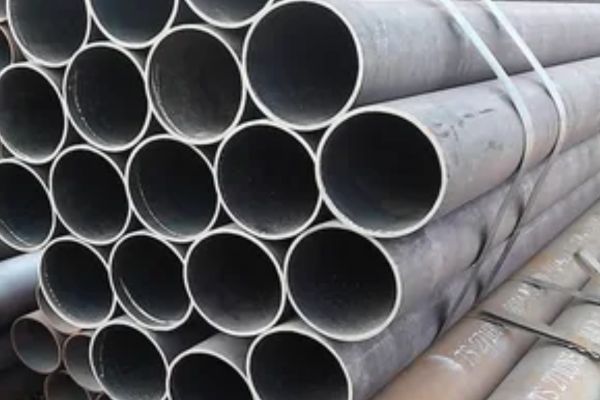

| ASTM A335 GR P1 Pipes Type | Seamless / ERW / Welded / Fabricated |
| Craft | Cold rolled and Cold drawn |
| UNS K11522 Pipes Length | Standard Double & In Cut length also. |

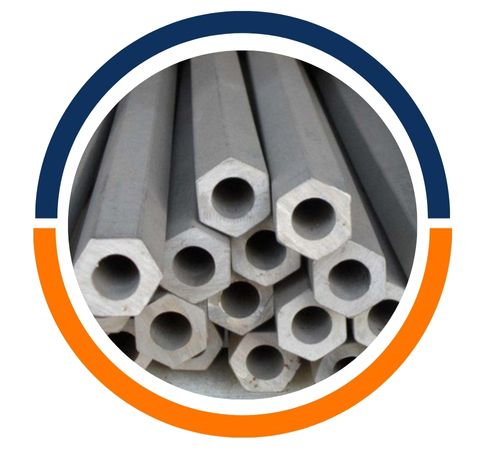

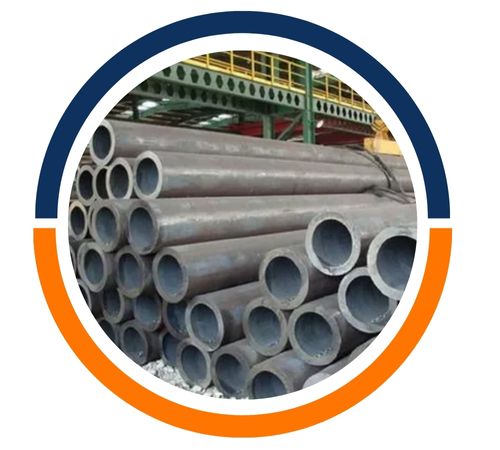

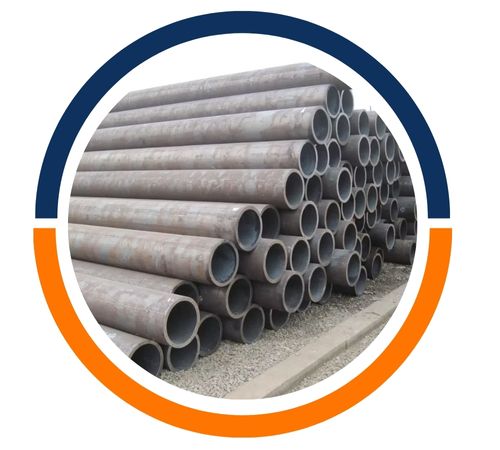

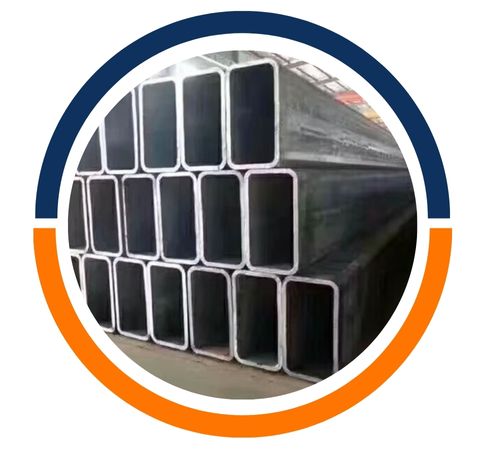

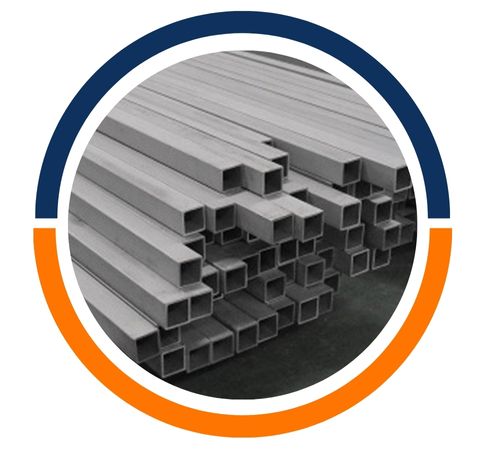

| ASTM A335 P1 Pipes available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| Specialized in | Large Diameter ASTM A335 P1 Pipe |
| Sa335 Grade P1 Pipe End | Plain End, Beveled End, Treaded |
| Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Alloy Steel P1 | C | Cr | S | Si | Mn | Mo | P |
| 0.05 – 0.15 | 1.00 – 1.50 | 0.025 max | 0.50 – 1.00 | 0.30 – 0.60 | 0.44 – 0.65 | 0.025 max |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Dang Steel is a major manufacturer and a supplier of premium Alloy Steel P1 pipe in Da Nang, the Vietnam. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| ASTM | ASME | JIS G 3458 | UNS | BS | DIN | ISO | ABS | NK |
| A335 P1 | SA335 P1 | STPA 12 | K11597 | – | 17175 15Mo3 | 2604 II TS26 | ABS 6 | KSTPA 12 |
| 17177 15Mo3 | 2604 III TW26 |
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| ASTM A335 P1 Pipe Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 |
| 0.147 | 0.546 | 1.09 | ||
| 0.188 | 0.464 | 1.31 | ||
| 0.294 | 0.252 | 1.72 | ||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 |
| 0.154 | 0.742 | 1.48 | ||
| 0.219 | 0.612 | 1.95 | ||
| 0.308 | 0.434 | 2.44 | ||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 |
| 0.179 | 0.957 | 2.17 | ||
| 0.250 | 0.815 | 2.85 | ||
| 0.358 | 0.599 | 3.66 | ||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 |
| 0.191 | 1.278 | 3.00 | ||
| 0.250 | 1.160 | 3.77 | ||
| 0.382 | 0.896 | 5.22 | ||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 |
| 0.200 | 1.500 | 3.63 | ||
| 0.281 | 1.338 | 4.86 | ||
| 0.400 | 1.100 | 6.41 | ||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 |
| 0.154 | 2.067 | 3.66 | ||
| 0.218 | 1.939 | 5.03 | ||
| 0.250 | 1.875 | 5.68 | ||
| 0.281 | 1.813 | 6.29 | ||
| 0.344 | 1.687 | 7.47 | ||
| 0.436 | 1.503 | 9.04 | ||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 |
| 0.203 | 2.469 | 5.80 | ||
| 0.216 | 2.443 | 6.14 | ||
| 0.250 | 2.375 | 7.02 | ||
| 0.276 | 2.323 | 7.67 | ||
| 0.375 | 2.125 | 10.02 | ||
| 0.552 | 1.771 | 13.71 |
Alloy Steel P1 Pipes find extensive use in power generation plants, boilers, heat exchangers, and superheaters, thanks to their ability to endure moderate thermal stress. In the petrochemical and refinery sectors, they are essential for transporting fluids, steam, and gases under pressure. Additional applications include chemical processing, oil and gas pipelines, and general engineering components where strength and wear resistance are crucial. Durable, cost-effective, and reliable, Alloy Steel P1 Pipes are a fantastic option for medium-temperature and pressure service applications.
Dang Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Da Nang, Vietnam.
