Dang Steel, a reputable manufacturer and supplier located in Da Nang, Vietnam, is dedicated to delivering top-notch Alloy Steel F11 Flanges. Renowned for their precision engineering and reliability, these flanges find their place in various industries where strength and durability are non-negotiable. At Dang Steel, customers enjoy the advantages of cutting-edge production facilities, rigorous quality controls, and adherence to international standards, all of which guarantee the outstanding performance of Alloy Steel F11 Flanges. With a solid reputation for prompt delivery and competitive pricing, Dang Steel has established itself as a go-to partner for businesses both locally and globally.
Alloy Steel F11 Flanges are mainly made up of chromium (1-1.5%), molybdenum (0.44-0.65%), carbon (0.05-0.15%), manganese (0.3-0.6%), silicon (0.5-1.0%), along with small amounts of phosphorus and sulfur. This distinctive blend boosts their toughness, creep strength, and resistance to corrosion. In terms of mechanical properties, F11 flanges showcase impressive tensile strength, remarkable hardness, and dependable elongation, making them ideal for high-pressure and high-temperature settings. Their exceptional thermal stability and oxidation resistance make them a reliable choice for critical engineering tasks in sectors like petrochemicals, refineries, and power generation.
| Specifications | ASTM A182 Alloy Steel F11 Flanges |
|---|---|
| ASME B16.5 Alloy Steel F11 Flanges size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Alloy Steel F11 Flanges Standards | ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, |
| Alloy Steel F11 Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Alloy Steel F11 Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Alloy Steel F11 Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Alloy Steel F11 Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Alloy Steel F11 Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Alloy Steel F11 Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|

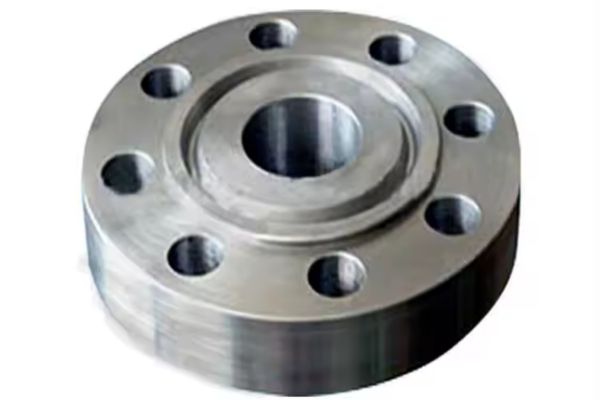

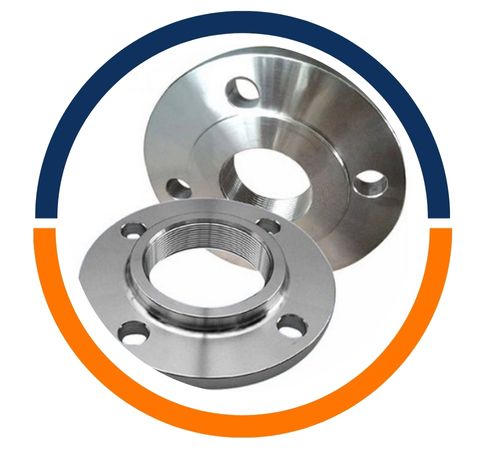

| Connect Type/ Flange Face Type | Small Male-Female (SMF), Small Tongue & Groove, Large Tongue & Groove,Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF) |
| Most common types of Alloy Steel F11 Flanges |
|
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS Alloy Steel F11 Flanges Threaded Flanges, Socketweld Flanges, Slip-On Flanges, Blind Flanges, Weld Neck Flanges |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Specialized manufacturer of |
|
| Alloy Steel F11 Flanges Standard | ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange, ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE,
|
| Key markets and industries for Alloy Steel F11 Flanges |
|
| Export to | Thailand, Peru, Iran, Korea, Singapore, Ireland, Oman, Dubai, Ukraine, Brazil, India, Canada, Egypt, Indonesia, USA, Spain, Saudi Arabia, etc |
| Alloy Steel F11 Flanges Application |
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Grade | C | Mn | P | S | Si | Ni | Ch | Mo | Cb |
|---|---|---|---|---|---|---|---|---|---|
| F11 | 0.15 | 0.30-0.60 | 0.030 | 0.030 | 0.50-1.00 | – | 1.00-1.50 | 0.44-0.65 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| F11 | 415 | 205 | 20 | – | 121-174 |
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| Alloy Steel F11 | K11597/K11572 | 1.7335 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
|
Pipe Normal Diam. |
O.D. Flange |
Thk. Of Flange Min |
Diam.
of
Hub |
Diameter of Raised Face |
Length Hub.Y |
Thread Length |
Diam.
of Bolt
Circle |
Diam.
of Bolt
Holes |
Number
of Bolts |
Diam. of
Bolts
(inch) |
KG |
LB |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
inch |
dn |
O |
C |
X |
G |
Y |
T |
BC |
BH |
BN |
BD |
||
|
1/2″ |
15 |
89.00 |
11.20 |
30.20 |
35.10 |
15.70 |
15.70 |
60.50 |
15.80 |
4 |
1/2″ |
0.4 |
0.9 |
|
3/4″ |
20 |
98.50 |
12.70 |
38.10 |
42.90 |
15.70 |
15.70 |
69.90 |
15.80 |
4 |
1/2″ |
0.7 |
1.5 |
|
1″ |
25 |
108.00 |
14.20 |
49.30 |
50.80 |
17.50 |
17.50 |
79.30 |
15.80 |
4 |
1/2″ |
0.8 |
1.8 |
|
1-1/4″ |
32 |
117.50 |
15.70 |
58.70 |
63.50 |
20.60 |
20.60 |
88.90 |
15.80 |
4 |
1/2″ |
1.2 |
2.6 |
|
1-1/2″ |
40 |
127.00 |
17.50 |
65.00 |
73.20 |
22.40 |
22.40 |
98.60 |
15.80 |
4 |
1/2″ |
1.5 |
3.3 |
|
2″ |
50 |
152.50 |
19.10 |
77.70 |
91.90 |
25.40 |
25.40 |
120.70 |
19.10 |
4 |
5/8″ |
2.3 |
5.1 |
|
2-1/2″ |
65 |
178.00 |
22.40 |
90.40 |
104.60 |
28.40 |
28.40 |
139.70 |
19.10 |
4 |
5/8″ |
3.7 |
8.1 |
|
3″ |
80 |
190.50 |
23.90 |
108.00 |
127.00 |
30.20 |
30.20 |
152.40 |
19.10 |
4 |
5/8″ |
4.1 |
9 |
|
3-1/2″ |
90 |
216.00 |
23.90 |
122.20 |
139.70 |
31.80 |
31.80 |
177.80 |
19.10 |
8 |
5/8″ |
5.1 |
11.2 |
|
4″ |
100 |
228.50 |
23.90 |
134.90 |
157.20 |
33.30 |
33.30 |
190.50 |
19.10 |
8 |
5/8″ |
5.9 |
13 |
|
5″ |
125 |
254.00 |
23.90 |
163.60 |
185.70 |
36.60 |
36.60 |
215.90 |
22.40 |
8 |
3/4″ |
7 |
15.4 |
|
6″ |
150 |
279.50 |
25.40 |
192.00 |
215.90 |
39.60 |
39.60 |
241.30 |
22.40 |
8 |
3/4″ |
8.4 |
18.5 |
|
8″ |
200 |
343.00 |
28.40 |
246.10 |
269.70 |
44.50 |
44.50 |
298.50 |
22.40 |
8 |
3/4″ |
13 |
28.6 |
|
10″ |
250 |
406.50 |
30.20 |
304.80 |
323.90 |
49.30 |
49.30 |
362.00 |
25.40 |
12 |
7/8″ |
18 |
39.5 |
|
12″ |
300 |
482.50 |
31.80 |
365.30 |
381.00 |
55.60 |
55.60 |
431.80 |
25.40 |
12 |
7/8″ |
29 |
64 |
|
14″ |
350 |
533.50 |
35.10 |
400.10 |
412.80 |
57.20 |
57.20 |
476.30 |
28.50 |
12 |
1″ |
39 |
86 |
|
16″ |
400 |
597.00 |
36.60 |
457.20 |
469.90 |
63.50 |
63.50 |
539.80 |
28.50 |
16 |
1″ |
47 |
103 |
|
18″ |
450 |
635.00 |
39.60 |
505.00 |
533.40 |
68.30 |
68.30 |
577.90 |
31.80 |
16 |
1 1/8″ |
57 |
126 |
|
20″ |
500 |
698.50 |
42.90 |
558.80 |
584.20 |
73.20 |
73.20 |
635.00 |
31.80 |
20 |
1 1/8″ |
76 |
167 |
|
24″ |
600 |
813.00 |
47.80 |
663.40 |
692.20 |
82.60 |
82.60 |
749.30 |
35.10 |
20 |
1 1/4″ |
97 |
214 |
Dang Steel is a top manufacturer and supplier of high-quality Alloy Steel F11 Flanges products in Da Nang, Vietnam. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Alloy Steel F11 Flanges are extensively utilized in industries that require strong, durable, and heat-resistant connections. They are frequently found in power plants, refineries, petrochemical facilities, and boiler equipment due to their capability to endure extreme pressure and temperature. These flanges play a crucial role in pipelines transporting steam, gas, and chemicals, ensuring safe and leak-proof connections. Moreover, they are used in heat exchangers, pressure vessels, and turbines. Their outstanding resistance to stress corrosion and thermal fatigue makes them a preferred choice for demanding applications.
Dang Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Da Nang, Vietnam.
