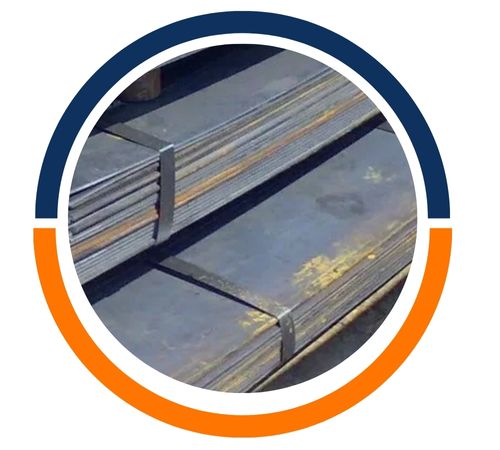

Dang Steel is a well-respected manufacturer and supplier of ABS EH36 shipbuilding steel sheets and plates, based in Da Nang, Vietnam. Known for providing top-notch marine-grade steel, Dang Steel adheres to international standards and holds certification from the American Bureau of Shipping (ABS). The EH36 grade steel they offer is perfect for critical structural applications in shipbuilding and offshore engineering. With cutting-edge manufacturing capabilities, rigorous quality control, and prompt logistics, Dang Steel caters to major shipyards and marine fabricators throughout Asia and beyond, delivering durable, reliable, and cost-effective steel solutions for maritime infrastructure projects.
ABS EH36 shipbuilding steel is a high-strength structural grade primarily made of iron, with carefully controlled amounts of carbon (≤0.18%), manganese (0.90–1.60%), phosphorus (≤0.035%), sulfur (≤0.035%), and silicon (0.10–0.50%). It may also contain micro-alloying elements like nickel, chromium, and copper to boost strength. This grade boasts a minimum yield strength of 355 MPa and tensile strength between 490 and 620 MPa. EH36 is known for its excellent toughness and low-temperature impact resistance, making it a great choice for arctic and harsh marine environments where safety and performance are paramount.
STANDARD:Â ASTM A131, ASME SA131
PLATES QUALITY: EH36(Dead Soft Quality)
THICKNESS: 3/16″ – 4″, 4-60mm
WIDTH: 48″ – 120″, 2000 / 2500 / 3000mm
LENGTH: 96″ – 480″, 6000 / 8000 / 10000 / 12000 mm
| Grade EH36 | C | Si | Mn | P | S | V | Al | Cr | Cu | Mo | Nb | Ni | Ti |
| 0.180 | 0.1-0.50 | 0.90-1.6 | 0.035 | 0.035 | 0.05-0.10 | 0.015 | 0.2 | 0.35 | 0.08 | 0.02-0.05 | 0.4 | 0.02 |
| Grade | Thickness(mm) | MinYield(Mpa) | Tensile(Mpa) | Elongation (%) | Charpy V Impact Test | |
| Grade ABS EH36 | t≤50 | Min 355 Mpa | 490-620 Mpa | 21% | 24J | 34J |
| 50＜t≤70 | Min 355 Mpa | 490-620 Mpa | 21% | 27J | 41J | |
| 70＜t≤100 | Min 355 Mpa | 490-620 Mpa | 21% | 34J | 50J | |
| Grade | DNV | GL | LR | BV | CCS | NK | KR | RINA |
| ABS EH36 | NV E36 | GL-E36 | LR/EH36 | BV/EH36 | CCS/E36 | K E36 | R E36 | RI/E36 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Dang Steel is one of the most prominent manufacturers and suppliers of superior quality ABS EH36 Shipbuilding Steel Sheet and Plates in Da Nang, Vietnam. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â
| theoretical weight | Thickness (mm) | Thickness (mm) | theoretical weight | ||
|---|---|---|---|---|---|
| Kg/m2 | Kg/ft2 | Kg/m2 | Kg/ ft2 | ||
| 47.10 | 4.376 Kg/ft2 | 6 | 25 | 196.25 | 18.962 Kg/ ft2 |
| 54.95 | 5.105 Kg/ft2 | 7 | 26 | 204.10 | 20.420 Kg/ ft2 |
| 86.35 | 8.751 Kg/ft2 | 11 | 32 | 251.20 | 25.525 Kg/ ft2 |
| 172.70 | 16.044 Kg/ft2 | 22 | 50 | 392.50 | 36.464 Kg/ ft2 |
| 62.80 | 5.834 Kg/ft2 | 8 | 28 | 219.80 | 21.879 Kg/ ft2 |
| 157.00 | 14.586 Kg/ft2 | 20 | 48 mm | 376.80 | 35.006 Kg/ ft2 |
| 78.50 | 7.293 Kg/ft2 | 10 | 30 mm | 235.50 | 23.337 Kg/ ft2 |
| 94.20 | 10.21 Kg/ft2 | 12 | 34 mm | 266.90 | 26.254 Kg/ ft2 |
| 125.60 | 11.669 Kg/ft2 | 16 | 40 mm | 314.00 | 29.172 Kg/ ft2 |
| 141.30 | 13.127 Kg/ft2 | 18 | 45 mm | 353.25 | 32.818 Kg/ ft2 |
| 109.90 | 10.939 Kg/ft2 | 14 | 35 mm | 274.75 | 27.713 Kg/ ft2 |
| 188.40 | 18.232 Kg/ft2 | 24 | |||
| Max. width | Thickness |
|---|---|
| EH36 | From to up to |
| 1370 | 1.70 to 1.80 |
| 1280 | 1.60 to 1.70 |
| 1440 | 1.80 to 1.90 |
| 1520 | 1.90 to 2.00 |
| 1170 | 1.49 to 1.60 |
| 2070 | 12.70 to 20.00 |
| 1590 | 2.00 to 2.20 |
| 1730 | 2.20 to 2.40 |
| 1880 | 2.60 to 2.80 |
| 1960 | 2.80 to 3.12 |
| 1800 | 2.40 to 2.60 |
| 2070 | 3.12 to 12.70 |
ABS EH36 steel sheets and plates find extensive use in building ocean-going vessels, offshore oil platforms, and structural components that face extreme stress and cold temperatures. Typical applications include hull fabrication, deck structures, bulkheads, and superstructures in cargo ships, naval vessels, and icebreakers. The steel’s impressive yield strength, weldability, and toughness make it particularly valuable in Arctic and deep-sea settings where durability is crucial. Dang Steel’s EH36 plates guarantee long-term reliability and performance in demanding maritime conditions.
