Dang Steel, based in Da Nang, Vietnam, stands out as a top manufacturer and supplier of premium alloy steel products, including the highly sought-after 16Mo3 pipes. Known for its commitment to precision, reliability, and adherence to international standards, Dang Steel provides 16Mo3 pipes that excel in high-temperature and high-pressure settings. These pipes find their place in power plants, refineries, and industrial boilers. With a range of seamless and welded 16Mo3 pipes available in various sizes and specifications, Dang Steel caters to the diverse needs of both global and local industries. Thanks to its advanced infrastructure and skilled workforce, the company guarantees quality, performance, and timely delivery for every order.
16Mo3 is a low-alloy steel grade that primarily consists of 0.12–0.20% carbon, 0.30–0.90% manganese, ≤0.025% phosphorus, ≤0.010% sulfur, and 0.25–0.35% molybdenum, along with trace amounts of silicon and chromium. These pipes are celebrated for their impressive mechanical strength, boasting a tensile strength of 440–590 MPa and a minimum yield strength of 220 MPa. They also show remarkable resistance to high temperatures and corrosion, particularly in hydrogen-rich and acidic conditions. 16Mo3 is well-suited for heat treatment processes and maintains its structural integrity even under thermal stress and pressure changes.
| 16Mo3 Pipes Specifications | ASTM A335 / ASME SA335 |
|---|---|
| Dimensional specification | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| ASTM A335 16Mo3 Seamless Pipe Size | 1 / 2″ NB – 16″ NB |
| ASTM A335 16Mo3 Welded Pipe Size | 1 / 2″ NB – 24″ NB |
| ASTM A335 16Mo3 EFW Pipe Size | 6″ NB – 24″ NB |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Chrome Moly 16Mo3 Pipes Manufacturing Shapes | Hydraulic, Round, Rectangle, Square, Hex, Honed |
| Alloy Steel 16Mo3 Pipe Manufacturing Techniques | Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
| Alloy Steel 16Mo3 Pipe Schedule Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Chrome Moly 16Mo3 Pipes End Types | Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends) |
| Delivery Condition of Alloy Steel 16Mo3 Pipe | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Surface Finish | No.1, No.4, No.8 Mirror Finish, 2B |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Inspection and Test Reports | EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports |
| Marking | Specification Grade Nominal Pipe Sizes Pipe Schedule or Wall Thickness Manufacturing Method (Seamless / Welded) Heat Number Manufacturer’s Name or Custom Logo – on request Marked Pipe Sample: ANSI B36.19 ASTM A 335 16Mo3 12″ NB SCH 40S SEAMLESS HEAT NO. XXXX |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Alloy Steel Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Packing of Chrome Moly 16Mo3 Pipes | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be on request |
| 16MO3 | C | Mn | S | N | Cu | Si | P | Cr | Ni | Mo |
| 0.12- 0.2 | 0.40- 0.90 | 0.01 | 0.012 | 0.30 | 0.35 | 0.025 | 0.30 | 0.30 | 0.25- 0.35 |
| 16Mo3 | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation in 100-150 mm(%) | Elongation in 16 mm(%) | Max Thickness (mm) |
| 440-590 | 220-275 | 19 | 24 | 250 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Dang Steel is a major manufacturer and a supplier of premium 16Mo3 Pipes in Da Nang, the Vietnam. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
|
DIN,WNr |
BS |
UNI |
ISO |
DIN | UNS |
|
16Mo3 |
240 |
16Mo3 |
P26 |
1.5415 | K11562 |
|
243 |
TS26 |
| Product Description | Outside Diamter, OD (in mm) | Wall Thickness, WT (in mm)> |
|---|---|---|
| 16Mo3 Alloy Steel Round Pipe | 6mm – 630mm | 0.5mm-30mm |

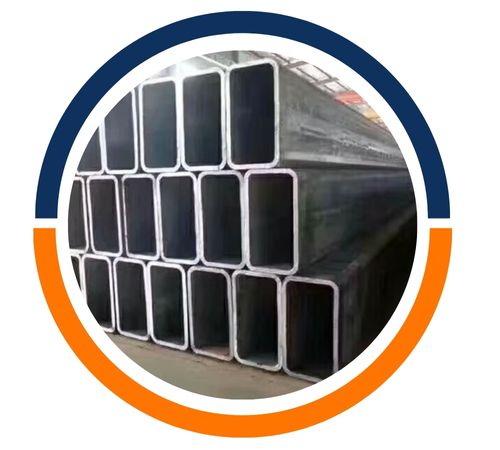

| 16Mo3 Alloy Steel Square Pipe | 12.7mm* 12.7mm to 300mm* 300mm | 0.5mm-30mm |
| 16Mo3 Alloy Steel Rectangular Pipe | 10*20mm to 100*200mm | 0.5mm-30mm |
| 16Mo3 Alloy Steel Colour Coated Pipe | 6mm to 630mm | 0.5mm-30mm |
| 16Mo3 Alloy Steel Ornamental Pipes | 12.7mm to 76.2mm | 0.5mm-2.0mm |

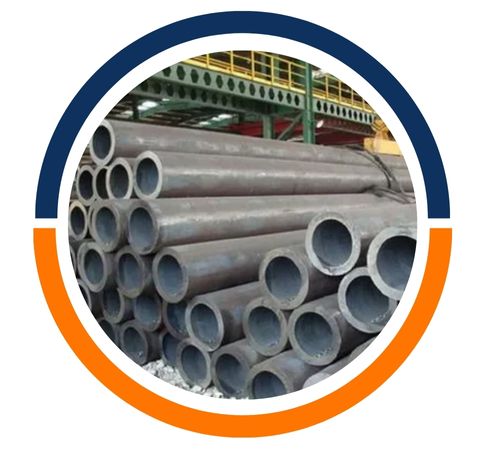

| 16Mo3 Alloy Steel Electropolished Pipes | 12.7mm to 250mm | 0.5mm-30mm |
| 16Mo3 Alloy Steel Slot Round Pipe | 12.7mm to 76.2mm | 0.5mm-2.0mm |
| 16Mo3 Alloy Steel Triangle Pipe | 16mm to 85mm | 0.5mm-3.0mm |
| 16Mo3 Alloy Steel Hexagonal Pipes | 13mm to 85mm | 0.5mm-2.0mm |
| 16Mo3 Thin-Wall Alloy Steel Pipes | 22mm*0.7mm to 108mm*2.0mm | 0.5mm-2.0mm |
| 16Mo3 Inner/Outside Polished Alloy Steel Pipes | 12.5mm to 203.2mm | 1.0mm – 5mm |
| 16Mo3 Alloy Steel Seamless Pipes | 6mm to 430mm | 0.8mm – 30mm |
| Cold Drawn | Outside Diameter, mm | Tolerance | – |
|---|---|---|---|
| outer diameter ≤ 114 | ± 10% or ± 0.2mm | – | |
| Hot rolled | Outside Diameter, mm | Tolerance | WT/outer diameter |
| outer diameter ≤ 219.1 | ± 12.5% or ± 0.4mm | WT/outer diameter ≤ 2.5% | |
| 2.5% ＜ WT/outer diameter ≤ 5% | |||
| 5% ＜ WT/outer diameter ≤ 10% | |||
| WT/outer diameter > 10% | |||
| outer diameter > 219.1 | ± 20% | WT/outer diameter ≤ 2.5% | |
| ± 15% | 2.5% ＜ WT/outer diameter ≤ 5% | ||
| ± 12.5% | 5% ＜ WT/outer diameter ≤ 10% | ||
| ± 10% | WT/outer diameter > 10% |
16Mo3 pipes are extensively utilized in high-temperature and high-pressure scenarios, especially within the power generation, petrochemical, and oil & gas sectors. They are perfect for crafting boilers, heat exchangers, steam piping, and pressure vessels that operate at elevated temperatures. The presence of molybdenum enhances their resistance to heat and corrosion, making them ideal for environments rich in hydrogen and acids. 16Mo3 is particularly advantageous in systems where temperature variations and thermal stress are frequent. With its excellent weldability and durability, it is a preferred choice for many applications.
